Corn processing

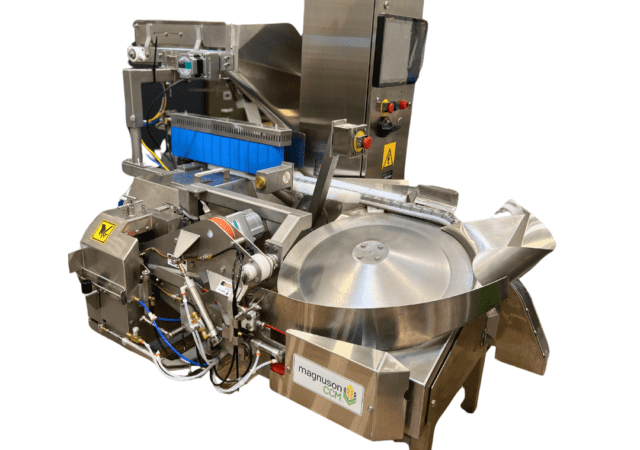

The Lynx an Electric Automatic Corn Cutter
A cut above the rest.
A cut above the rest.
The Magnuson CCM Lynx features the reliability of the hydraulic machine you know, while incorporating enhanced machine controls, reduced operating costs, and improved design.
It is a self-contained production machine, where units are flexible to fit any cutting room with little modification to existing conveyors.
Its space-saving design is sturdy and compact, taking up minimal floor space, and facilitating low maintenance costs.
Features and benefits:
Reduced operating cost
Eliminates the need for hydraulic oil, which provides significant cost savings (up to 5x reduction in energy costs compared to hydraulic)
Ease of installation/replacement
It has the same footprint as the hydraulic ACC, which eliminates the need for ancillary equipment (power bays, manifold, hydraulic piping, powerpacks, etc.)
Improved design
Includes improved user interfaces, displays, and hygienic design
Technical specs
| Inlet height: | Variable standard 66″ |
| Overall length: | Approx. 70″ |
| Overall width: | Approx. 58″ |
| Air requirement: | 45 scfh @ 90 psi |
| Water consumption: | Approx. 7 gph |
| Minimum spacing: | 5.5″ on center |
| Orientation accuracy: | 85-95% |
| Average rate: | 100-120 ears/min |
| Instantaneous rate: | 185 ears/min |
